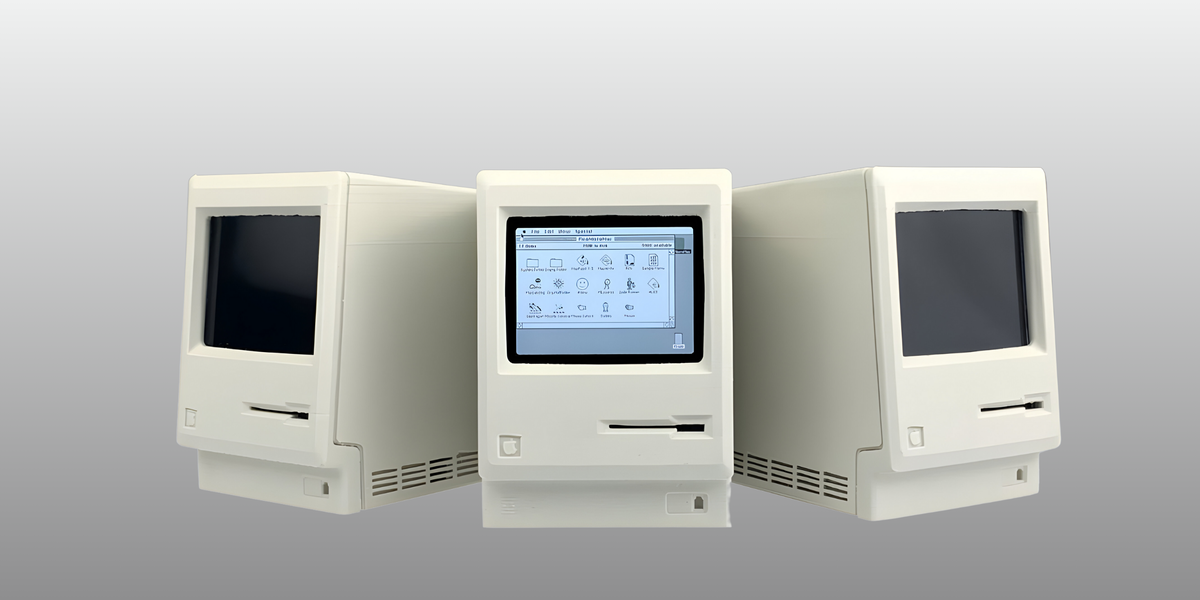

Did you know it was a portable macintosh? 1984 Apple’s original Macintosh’s miniature and completely functional copy was baptized as “Pico-Mac-Nano”. These technological wonders are only 62 millimeters high and surprisingly compatible with the USB keyboard and mouse, opening a universe of retro possibilities in your palm.

According to Blog 1bitrainbow,The idea of ​​this project was produced after the creator Nick Gillard faced similar projects such as “Pico-Mac”.An attempt of Matt Evans, which manages to imitate a simplified version of the original Macintosh at the summit with the System 3 operating system. A remarkable technical achievement is a remarkable technical success, considering the limitations of the summit as 264 KB RAM.

Big Apple Computer is available in miniature

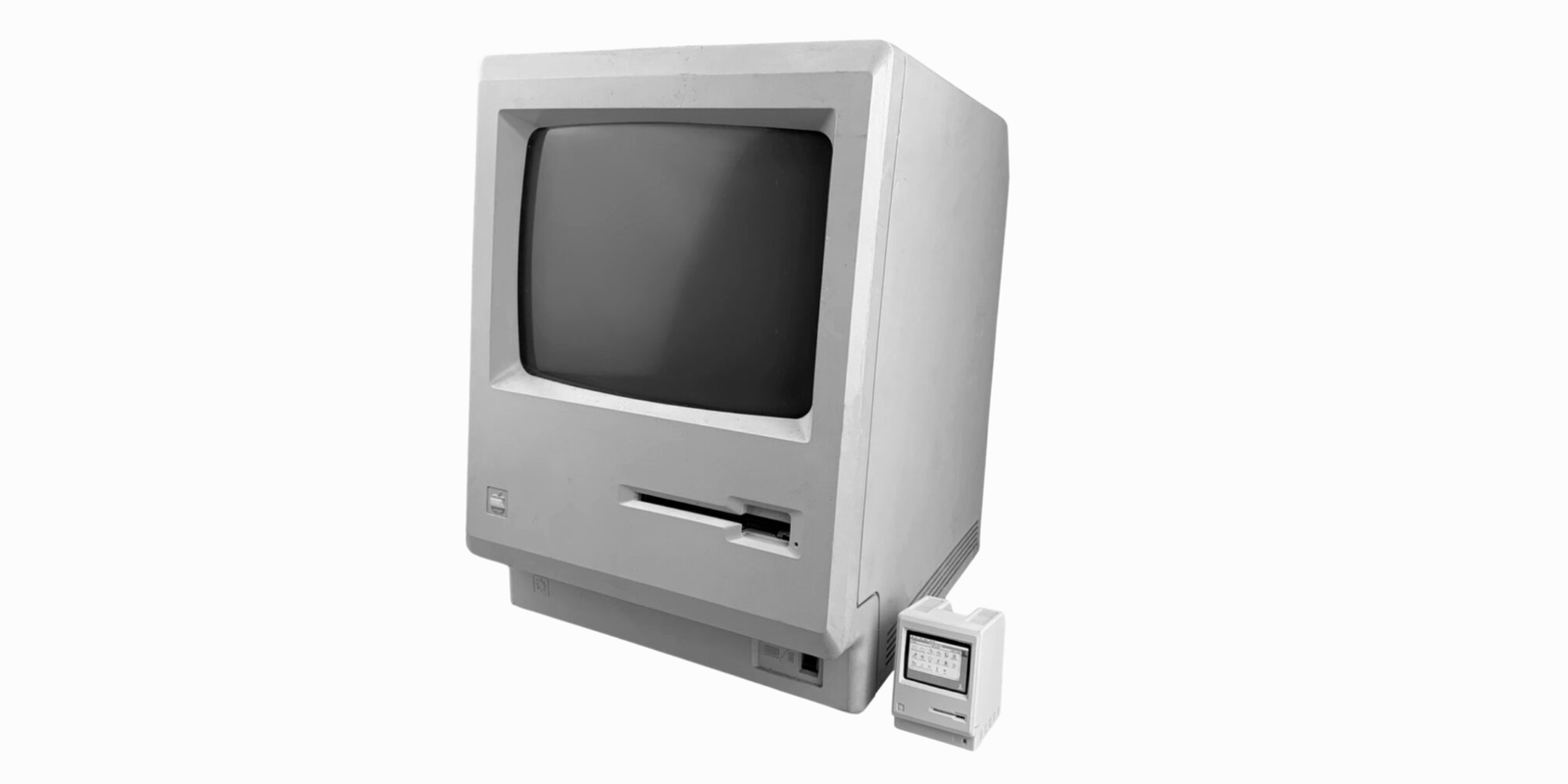

So the highest nano compared to the child Macintosh

Inspired by the vision of Evans, the creator of Pico-Mac-Nano began his own adventure: Integrate the Pico-Mac functionality into a miniature Macintosh residence containing a small LCD screen. The difficulty was to find a balance between aesthetic loyalty and technical applicability using the affordable components in the current market.

Of course and considering the size of the project, He faced various challenges such as what is described below:

Lcd screen

. 2 -inch TFT Panel (640×480 pixel) selection It represented that an unexpected challenge was skillfully dissolved by changing the emulator to produce a 480 pixel -wide image of the emulator, thus adapting to the physical width of the screen vertical.

16 -bit RGB56 interface was overcome by taking advantage of the monochrome nature of the original Macintosh, Send a binary signal from Pico-Mac’s VGA output to show a bright image.

Housing

The screen size was determined by only 62 mm the last height of the conservation. The design contained 3D modeling and printingThe original Macintosh’s screen slot, the internal support and to reproduce iconic elements such as the Archíris logo. A actuator was designed to operate the restaurant buttons and the summit.

Printed Circuit Plate (PCB)

The creation of a personalized PCB was very important for connecting all components in the small area. After a few prototypes, The last PCB included microSD card support (mounted next to the USB-C port) and the use of zero PICO RGB To indicate the activity of the system.

Food and peripherals:

Food and connection of USB peripherals (keyboard and mouse) are made with a special separatist cable (an optional internal battery).. The need to use certain OTG cables for the correct operation is emphasized.

Functionality

According to his creator, Pico-Mac and Pico-Mac-Nano are not commercial products, but open source concept testsThe compatibility of the software is not 100%guaranteed and the screen size may not change for long -term use. It also clarifies that the purchase of a assembly unit includes the costs of components, materials and production time without guarantee.

There is a print for Macintosh Pocket Collector

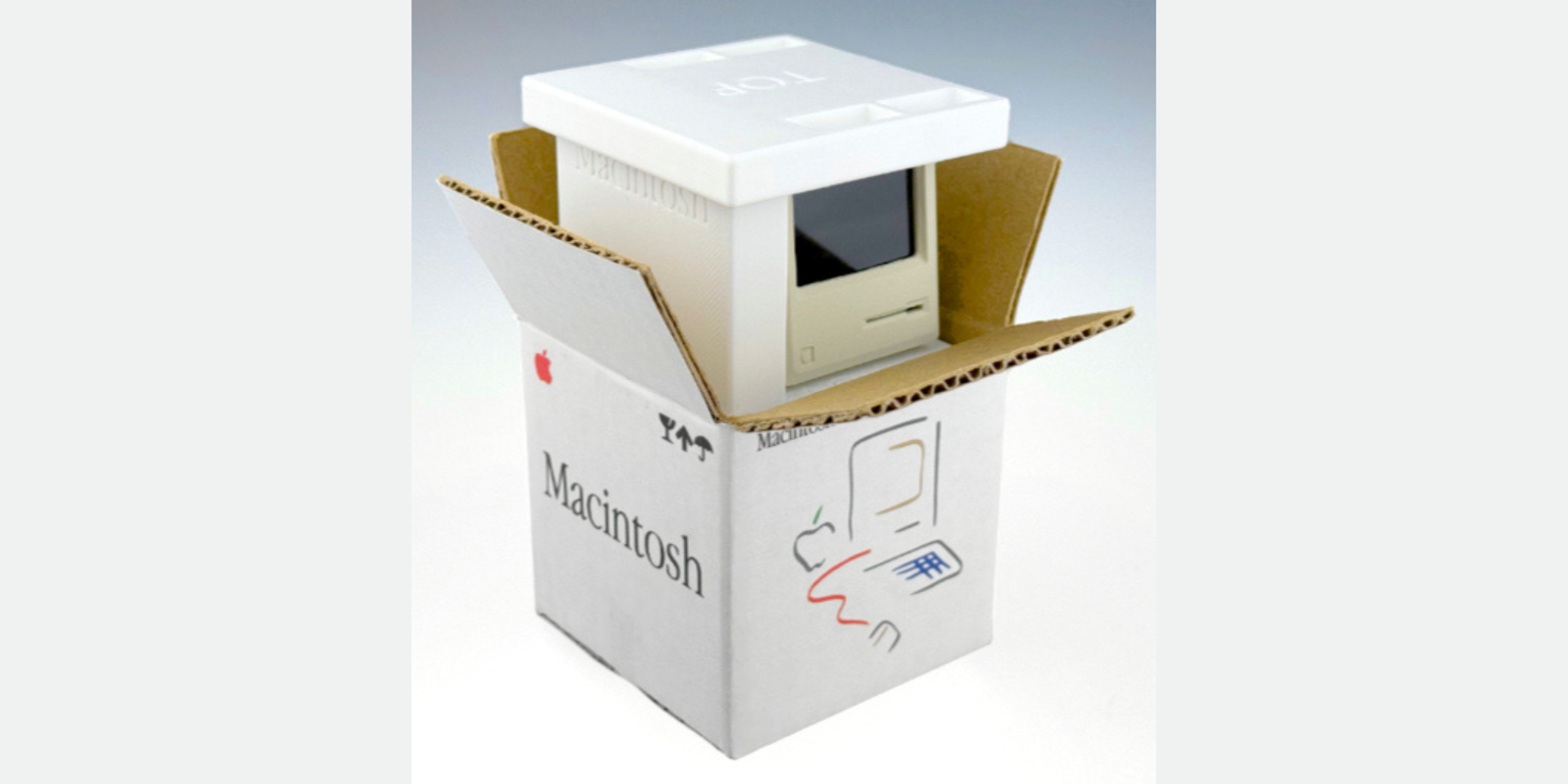

Pico-Mac-Nano’s Caja “Picasso” special edition

For a complete experience, A collector printing is presented with a miniature copy of the original “Picasso” box.POLICE EDNESS ON 3D and an accessory box.

Considering the price of the original Macintosh today, Pico-Mac-Nano represents the opportunity to get much less: two versions of Pico-Mac-Nano are available for the following price:

• Mac Nano Pico: 58 pounds
• Mac Peak, Special Edition: 76 Pounds

Despite practical limitations, Pico-Mac-Nano is a fascinating creation that miniaturizes the original Macintosh iconic on a functional pocket device. It is a proof of how much creativity and passion can reach the information date, To offer a concrete window to an innovation period with limited resources.
